Our Products

A 57 mm Cap Slitting Machine (Bottom Slitting Type) is a specialized machine used in cap manufacturing to create tamper-evident bands on plastic bottle caps. The machine cuts (slits) the lower section of the cap, separating the tamper band from the main cap while leaving small bridges intact.Main Purpose :- 1. Produces tamper-evident caps for bottles.2. Creates a breakable ring (security band) at the bottom of the cap.3. Commonly used for water, beverage, edible oil, pharmaceutical, and chemical bottle caps.Specifications for 57 mm Caps :-1. Cap Diameter: 57 mm2. Slitting Type: Bottom slitting3. Operation: Semi-automatic or automatic4. Output Capacity: Varies by machine design (typically several thousand caps per hour)5. Suitable Materials: HDPE, PP plastic caps
Cap Slitting Machine-Bottom
VIEW DETAILS
Capacity : 200 caps/minUsage/Application : Plastic cap manufacturingHeight Of Conveyor : 7.5 feet(1100x560x2200)Weight L : 550 kgsAutomation Grade : AutomaticVoltage : 415 v ac wth neutralCap Size : Customise i.e 28 mm ,38 mmMachine Dimensions : 2100x700x1900Number Of Heads : 6 headStar Wheel Assly : 6 headElectrical Supply : 415 v ac 50 hz,with neutralAir Pressure : 6barMinimum order quantity : 01We are engaged in offering a wide range of Cap Slitting Folding Machine Loader to our clients. Our range of all products is widely appreciated by our clients.
Cap folding and slitting machine
VIEW DETAILS
Cap Slitting And Folding Machine Manufacturer In NadiadCapacity : 350 caps/minUsage/Application : Slitting and foldingHeight Of Conveyor : 2200Cap folding slitting machine with loader
Cap Slitting And Folding Machine
VIEW DETAILS
Leading Manufacturer of automatic assembly machines in Nadiad.Application : Automotive PartsMachine Type : Rotary IndexingProduction Capacity : Above 80 pcs/minMaterial : AluminiumAutomation Grade : AutomaticPower Source : ElectricStations : 7-12 StationAutomation Grade : Semi-Automatic- Warranty : 9 months on PLC, HMI motor & Drive.- Air compressor : 3 HP 3 phase (your scope)- Free : Recipe, Training of operations and general maintenance of the machine at our Surat factory.- Machine Speed : 10-15 holder/minute (Depends on operator)- Machine weight : @200 Kg
Special Purpose Machines
VIEW DETAILS

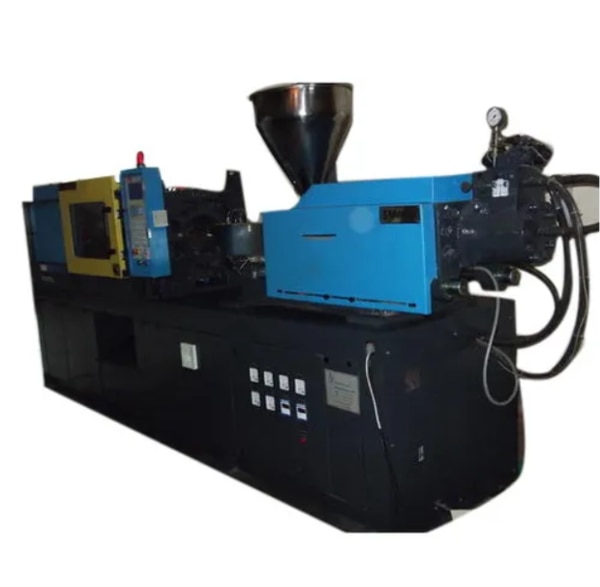

Minimum Order Quantity : 01 PieceCapacity : 50 ton/dayOperation Mode : AutomaticClamping Way : HydraulicPlastic Type : PETMachine Weight : 3 TonneStructure : HorizontalOil Tank Capacity : 200 LWarranty : 1 YearNumber Of Phases : 3 PhasePower : 20 HPWe are engaged in offering a wide range of Automatic Plastic Bottle Cap Making Machine to our clients. Our range of all products is widely appreciated by our clients.Additional Information:Production Capacity: hdpe capDelivery Time: 4 to 6 weekPackaging Details: customize
Plastic Moulding Machine
VIEW DETAILS

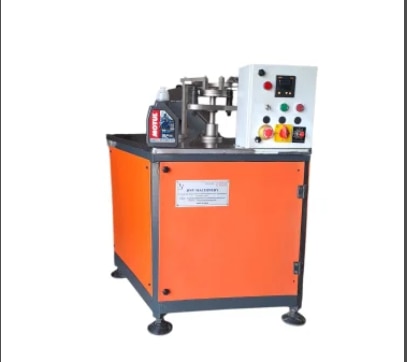

A Semi-Automatic Cap Sealing Machine is a packaging machine used to tighten, seal, or cap bottles and containers. The operator places the bottle and cap manually, and the machine performs the sealing or tightening process.Bottle Diameter : Cap diameter =45 mmChange parts required : NoPower Consumption : 0.5 hpOverall Dimension : 940 x 940 x 1040Motor Power : 0.5 hpSemi auto cap slitting mc ,45x45 mm cap size,manual cap placing and manual picking
Semi Automatic Cap Sealing Machine
VIEW DETAILS
We are engaged in offering a wide range of Cap Slitting Machine Long Cap Slotted Rotary Feeder System to our clients. Our range of all products is widely appreciated by our clients.Minimum Order Quantity : 1 PieceProcess Type : SlittingCapacity : 200 caps/minCap Diameter : 46 mmProduction Capacity : 10000 caps/hrPackaging Material : PlasticAutomation Grade : AutomaticCap Type : Pharma CapRaw Material : HDPEMaterial : ms powder coatingBrand : DNVUsage/Application : plastic cap /closure making machineHeight Of Conveyor ; 7.5 FEETWeight : 250 to 300 kgsVoltage : 415 v 3 phCap Size : 22 mm to 48 mmFilling Product Type : not applicable in this machineFilling Range : not applicable in this machineNumber Of Heads : 4 or 6Star Wheel Assly : 4 or 6Electrical Supply : 415 v ac 3 phAir Pressure : 6 barTorque Tightening Accuracy : not applicable in this machineRinsing Water Consumption : not applicable in this machineChange parts required : noMinimum order quantity : 01Package Volumes ml : not applicable in this machineProcessing Types : not applicable in this machineFilling Speed : not applicable in this machineContainer Size : 200 ml 2000 mlCapping Speed : 10000 to 15000 caps per hourCountry of Origin : Made in IndiaWe are engaged in offering a wide range of Cap Slitting Machine Long Cap Slotted Rotary Feeder System to our clients. Our range of all products is widely appreciated by our clients.Additional Information:Production Capacity: 10000 to 15000 per hrDelivery Time: 30 DAYSPackaging Details: customize
Cap Slitting Machine
VIEW DETAILS

Filter using tags

Cap Slitting Machine Manufacturer In NadiadCap Slitting Machine Long Cap Slotted Rotary Feeder System ManufacturerLeading Manufacturer of automatic assembly machines in Nadiad.Special Purpose Machines Leading Manufacturer In Nadiad
A 57 mm Cap Slitting Machine (Bottom Slitting Type) is a specialized machine used in cap manufacturing to create tamper-evident bands on plastic bottle caps. The machine cuts (slits) the lower section of the cap, separating the tamper band from the main cap while leaving small bridges intact.Main Purpose :- 1. Produces tamper-evident caps for bottles.2. Creates a breakable ring (security band) at the bottom of the cap.3. Commonly used for water, beverage, edible oil, pharmaceutical, and chemical bottle caps.Specifications for 57 mm Caps :-1. Cap Diameter: 57 mm2. Slitting Type: Bottom slitting3. Operation: Semi-automatic or automatic4. Output Capacity: Varies by machine design (typically several thousand caps per hour)5. Suitable Materials: HDPE, PP plastic caps
View Details
Cap Slitting Machine-Bot
Capacity : 200 caps/minUsage/Application : Plastic cap manufacturingHeight Of Conveyor : 7.5 feet(1100x560x2200)Weight L : 550 kgsAutomation Grade : AutomaticVoltage : 415 v ac wth neutralCap Size : Customise i.e 28 mm ,38 mmMachine Dimensions : 2100x700x1900Number Of Heads : 6 headStar Wheel Assly : 6 headElectrical Supply : 415 v ac 50 hz,with neutralAir Pressure : 6barMinimum order quantity : 01We are engaged in offering a wide range of Cap Slitting Folding Machine Loader to our clients. Our range of all products is widely appreciated by our clients.
View Details
Cap folding and slitting
Cap Slitting And Folding Machine Manufacturer In NadiadCapacity : 350 caps/minUsage/Application : Slitting and foldingHeight Of Conveyor : 2200Cap folding slitting machine with loader
View Details
Cap Slitting And Folding
Leading Manufacturer of automatic assembly machines in Nadiad.Application : Automotive PartsMachine Type : Rotary IndexingProduction Capacity : Above 80 pcs/minMaterial : AluminiumAutomation Grade : AutomaticPower Source : ElectricStations : 7-12 StationAutomation Grade : Semi-Automatic- Warranty : 9 months on PLC, HMI motor & Drive.- Air compressor : 3 HP 3 phase (your scope)- Free : Recipe, Training of operations and general maintenance of the machine at our Surat factory.- Machine Speed : 10-15 holder/minute (Depends on operator)- Machine weight : @200 Kg
View Details
Special Purpose Machines
Minimum Order Quantity : 01 PieceCapacity : 50 ton/dayOperation Mode : AutomaticClamping Way : HydraulicPlastic Type : PETMachine Weight : 3 TonneStructure : HorizontalOil Tank Capacity : 200 LWarranty : 1 YearNumber Of Phases : 3 PhasePower : 20 HPWe are engaged in offering a wide range of Automatic Plastic Bottle Cap Making Machine to our clients. Our range of all products is widely appreciated by our clients.Additional Information:Production Capacity: hdpe capDelivery Time: 4 to 6 weekPackaging Details: customize
View Details
Plastic Moulding Machine
A Semi-Automatic Cap Sealing Machine is a packaging machine used to tighten, seal, or cap bottles and containers. The operator places the bottle and cap manually, and the machine performs the sealing or tightening process.Bottle Diameter : Cap diameter =45 mmChange parts required : NoPower Consumption : 0.5 hpOverall Dimension : 940 x 940 x 1040Motor Power : 0.5 hpSemi auto cap slitting mc ,45x45 mm cap size,manual cap placing and manual picking
View Details
Semi Automatic Cap Seali
We are engaged in offering a wide range of Cap Slitting Machine Long Cap Slotted Rotary Feeder System to our clients. Our range of all products is widely appreciated by our clients.Minimum Order Quantity : 1 PieceProcess Type : SlittingCapacity : 200 caps/minCap Diameter : 46 mmProduction Capacity : 10000 caps/hrPackaging Material : PlasticAutomation Grade : AutomaticCap Type : Pharma CapRaw Material : HDPEMaterial : ms powder coatingBrand : DNVUsage/Application : plastic cap /closure making machineHeight Of Conveyor ; 7.5 FEETWeight : 250 to 300 kgsVoltage : 415 v 3 phCap Size : 22 mm to 48 mmFilling Product Type : not applicable in this machineFilling Range : not applicable in this machineNumber Of Heads : 4 or 6Star Wheel Assly : 4 or 6Electrical Supply : 415 v ac 3 phAir Pressure : 6 barTorque Tightening Accuracy : not applicable in this machineRinsing Water Consumption : not applicable in this machineChange parts required : noMinimum order quantity : 01Package Volumes ml : not applicable in this machineProcessing Types : not applicable in this machineFilling Speed : not applicable in this machineContainer Size : 200 ml 2000 mlCapping Speed : 10000 to 15000 caps per hourCountry of Origin : Made in IndiaWe are engaged in offering a wide range of Cap Slitting Machine Long Cap Slotted Rotary Feeder System to our clients. Our range of all products is widely appreciated by our clients.Additional Information:Production Capacity: 10000 to 15000 per hrDelivery Time: 30 DAYSPackaging Details: customize
View Details
Cap Slitting Machine
